CBA Style

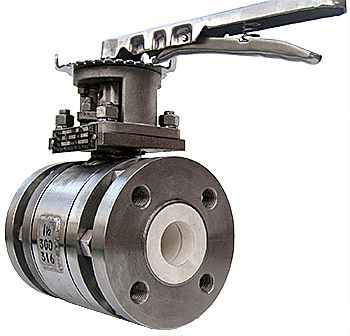

Ceramic Ball Valve

  • Ceramics withstand severe abrasion. Offering as much as 30X that of alloy materials.
  • Process media is prevented from contacting alloy body that is fully lined with structural ceramics.
  • Ceramics are nearly universally chemical resistant.
  • Full control options, including 4-20mA positioner and actuator.
  • Multiple ANSI and DIN flange standards available. ANSI 150, 300 and 600 classes are also available.
  • Ceramic seat materials are selected on an application basis. Options include Alumina, Zirconia, Silicon Carbide, and others.
  • Seat and Ball are lapped together in matched sets to insure positive sealing.
  • Materials are selected on an application basis. Options include Super Duplex Stainless Steel, Hastelloy, Stainless Steel, Cast steel and others.
Used in these Applications:
  • Flue Gas Desulfurization (FGD)
  • Slurry Control Applications
  • Pneumatic transportation of powders
  • Chemical Production
