CPV Style

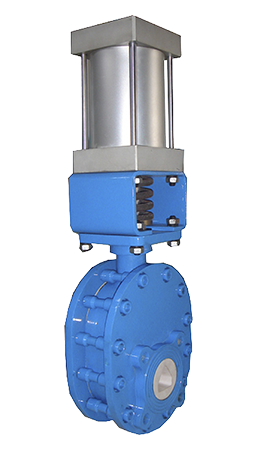

Ceramic Pneumatic Valve

Ultra Fine Powder and Fly Ash Service
  • Designed for use with high abrasion media, including dust, catalysts, and other small particles.
  • Gate seat is spring loaded to enhance sealing effect for ultra-fine powders.
  • Expansive gate cavity allows flowable product to "flow" into open areas, allowing gate to close
  • Ceramic internals for abrasion resistance
  • Dual seats create bi-directional sealing.
  • Multiple connections available, including ANSI and DIN Standard Flanged and pipe stub ends, for seamless integration into existing systems.
  • Materials are selected on an application basis.
  • Options include Super Duplex Stainless Steel, Hastelloy, Stainless Steel, Cast Steel, and others, as required.
  • Ceramic seat materials are also selected on an application basis. Options include high alumina ceramics, silicon carbide, and others.
Used in these Applications:
  • Power Plant Pneumatic Fly Ash Handling
  • Pneumatic Aluminum oxide transport.
  • Transport of Ultra-Fine Particulate
