CBF Style

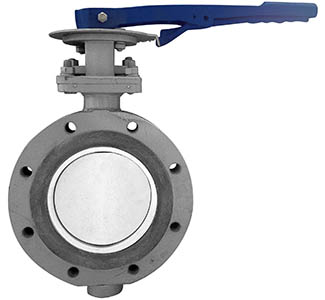

Ceramic Butterfly Valve

Aggressive Slurry Control Valve
  • Excellent, cost effective control valve for aggressive media.
  • Eliminates characteristic problems of butterfly valves in abrasive media: disc wear.
  • Ceramics materials are 6-8 times harder than most alloys.
  • Ceramics are nearly universally chemical resistant.
  • Full control options, including 4-20mA positioner and actuator.
  • Multiple ANSI and DIN flange standards available. ANSI 150 and 300 classes are also available.
  • Ceramic seat materials are selected on an application basis. Options include Alumina, Zirconia, Silicon Carbide, and others.
  • Body materials are selected on an application basis.Options include Super Duplex Stainless Steel, Hastelloy, Stainless Steel, Cast steel and others.
Used in these Applications:
  • FGD media control valve
  • Catalyst control
  • Pneumatic transport
